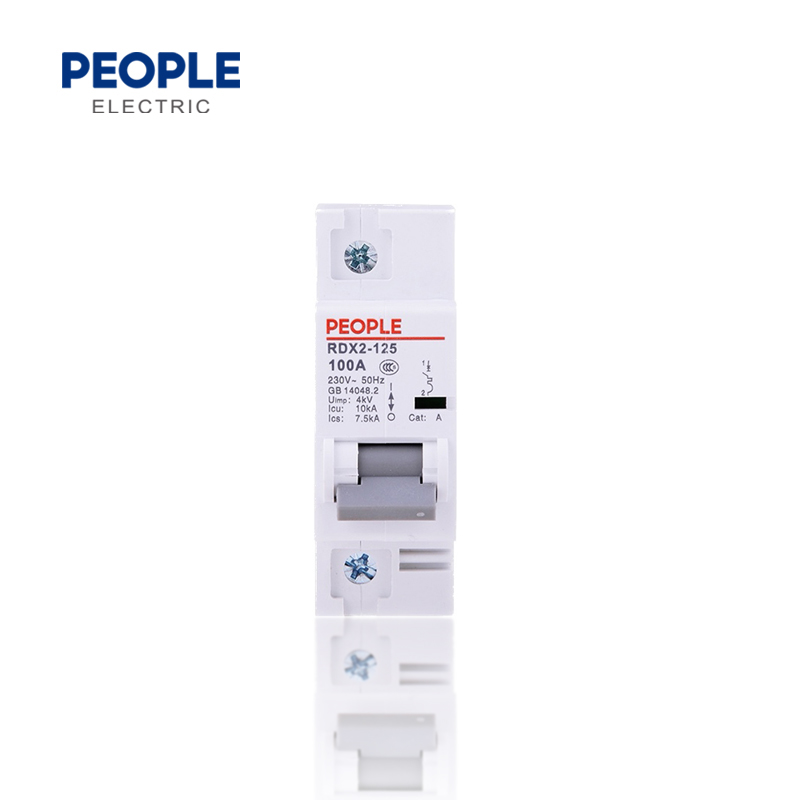

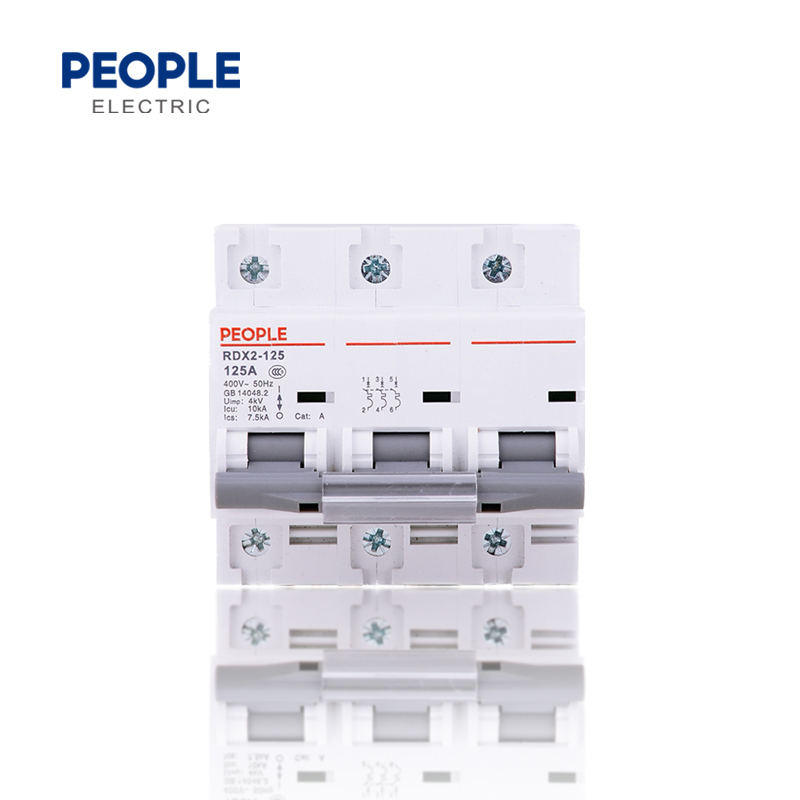

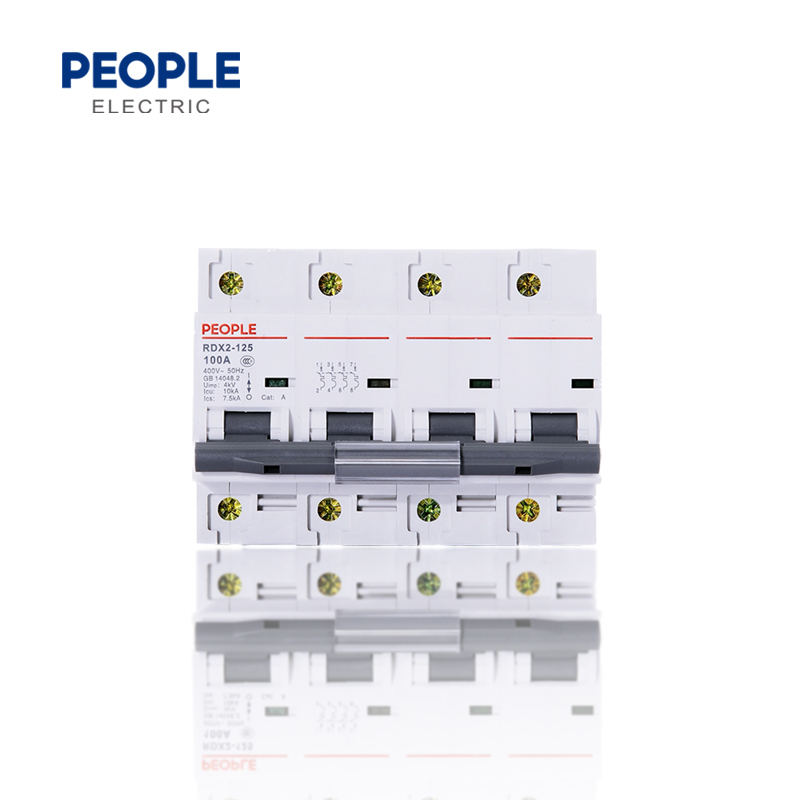

RDX2-125(MCB) 10KA

RDX2-125 miniature circuit breaker yagenewe circuits zikora kuri AC50/60Hz, 230V(1P), 400(2,3,4P), itanga uburinzi bwizewe bw'umubyigano n'uburinzi bw'umubyigano mugufi kandi ikora nk'ihinduranya ry'umurongo uhinduka gake. Ishobora gukoreshwa ahantu hatandukanye nko mu ngo, mu bucuruzi no mu nganda.

Ohereza imeri kuri twe Kuramo nka PDF

Ibisobanuro birambuye ku gicuruzwa

Ibipimo

Ingero n'imiterere

Ingano

Porogaramu

1. Ifite amanota agera kuri 63A

2.Ubwoko buke, ubushobozi bwinshi

3. Kurinda imiyoboro y'amazi irenze urugero n'imiyoboro y'amashanyarazi igenda buhoro

4. Gukingira neza hagati y'ibyiciro

5. Ibintu: amazu yo mu rugo, sisitemu zo gukwirakwiza amashanyarazi mu bucuruzi no mu nganda

6. Isanzwe: IEC/EN60898-1

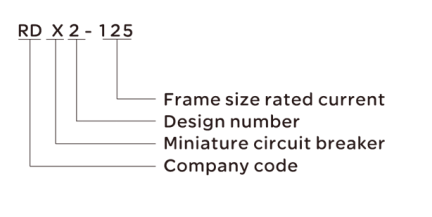

Nomero y'icyitegererezo

Ingero n'Imiterere

Ibipimo


Pole	1P, 2P, 3P, 4P
Voltage Ue (V) ifite amanota	230/400~240/415
Voltage y'ubwirinzi Ui (V)	500
Inshuro zipimwe (Hz)	50/60
Ingano y'ubushyuhe muri (A)	63,80,100,125A
Ubwoko bw'irekurwa ry'ako kanya	8-12In
Urwego rwo kurinda	IP 20
Ubushobozi bwo kugabanya (A)	Icn = 10000, Ics = 7500
Ingufu zihangana n'ingufu (1.2/50) Uimp (V)	4000
Ubuzima bwa mekanike	Inshuro 8000
Ubuzima bw'amashanyarazi	Inshuro 1500
Ubushyuhe bw'ikirere (℃)	-5~+40 (hamwe n'impuzandengo y'umunsi≤35)
Ubwoko bw'ihuza rya terminal	Urubaho rw'imodoka rwo mu bwoko bwa "cable/pin"

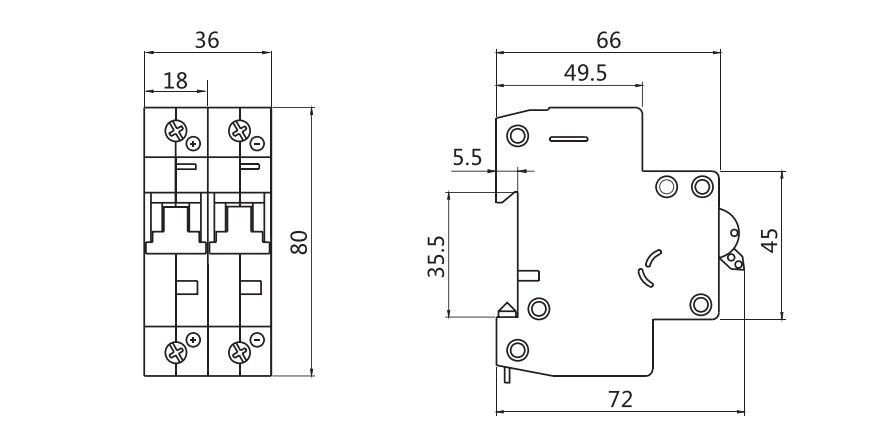

Ingano rusange n'iz'aho ushyira (mm)

Nomero y'icyitegererezo

Ibisobanuro bya tekiniki


Pole					1P, 2P, 3P, 4P
Voltage Ue (V) ifite amanota					230/400~240/415
Voltage y'ubwirinzi Ui (V)					500
Inshuro zipimwe (Hz)					50/60
Ingano y'ubushyuhe muri (A)					63,80,100,125
Ubwoko bw'irekurwa ry'ako kanya					8-12In
Urwego rwo kurinda					IP 20
Ubushobozi bwo kugabanya (A)					10000
Voltage yihanganira umuvuduko (1.2/50) Uimp (V)					4000
Ubuzima bwa mekanike					Inshuro 8000
Ubuzima bw'amashanyarazi					Inshuro 1500
Ubushyuhe buri hagati y'ikirere (°C)					-5~+40 (hamwe n'impuzandengo y'umunsi <35)
Ubwoko bw'ihuza rya terminal					Akabati k'imodoka gafite ubwoko bwa "cable/pin"
